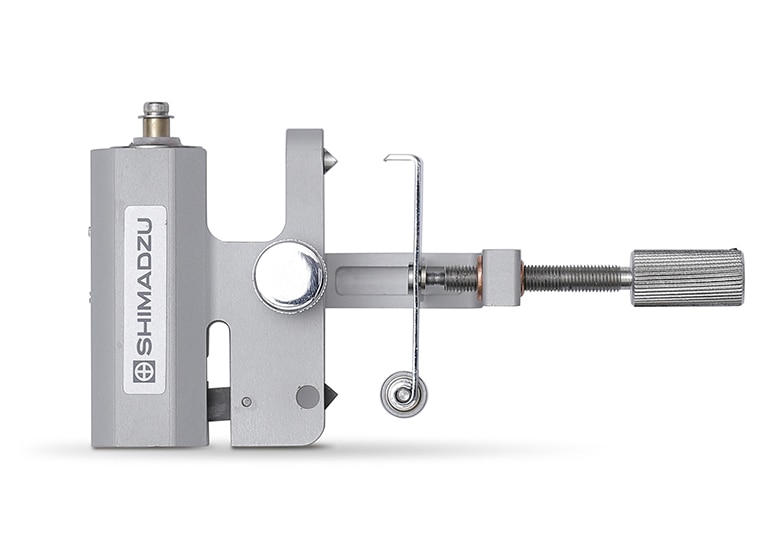

DT Series

Differential Transformer Type Extensometers

ISO Class 1 Compliant Differential Transformer Type Extensometers The ISO 6892-1 standard for tensile testing of metallic materials prescribes Class 1 or higher extensometers, and JIS Z2241 prescribes Class 2 or higher extensometers when measuring withstanding pressure. The DT series includes Class 1 compliant differential transformer type extensometers, which can be used to implement test methods compliant with metal tensile test standards.

Características

Extensometer Class 1 Compliant

This instrument is compliant with Class 1 in ISO 9513 and JIS B 7741 (±3 μm or ±1 % of the specified value, whichever is larger). It is also compliant with ASTM E83 Class C.

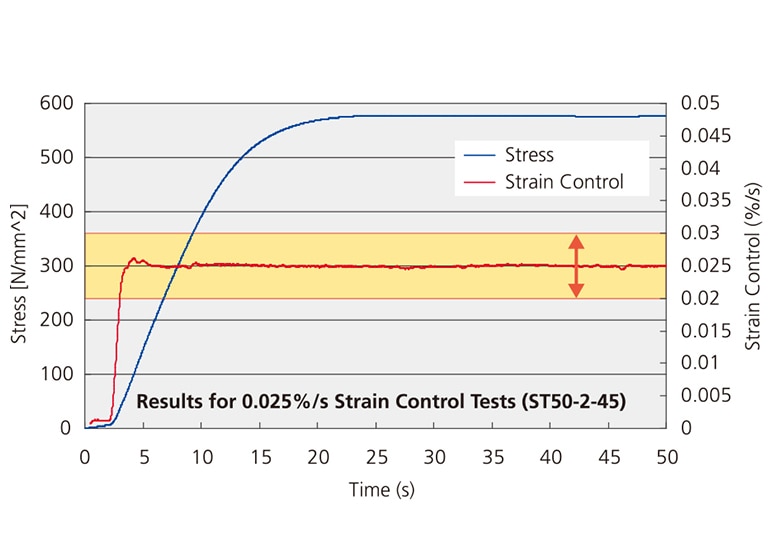

Compliant with Strain Rate Control Test Methods

Perform tests in compliance with "Test Rates by Strain Rate Control" from JIS B 7741 (Attachment JB (Reference)) and ISO 6892-1 (Method A).
