SPM-Nanoa - Especificações

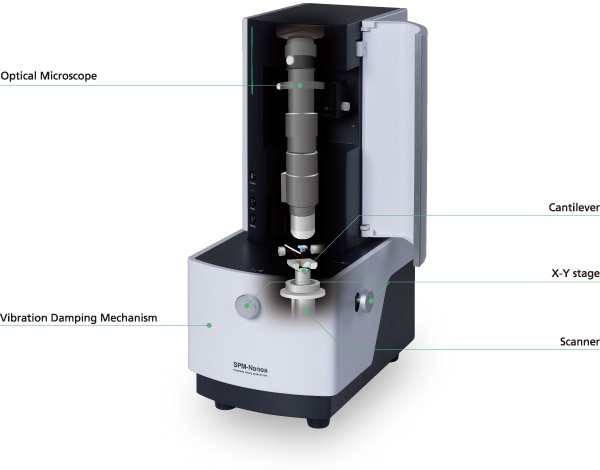

Scanning Probe Microscope/Atomic Force Microscope

Wide Assortment of Expansion Functionality

Scanner	Max. scanning size (X,Y,Z) 10 μm x 10 μm x 1 μm (standard) 30 μm x 30 μm x 5 μm (optional) 125 μm x 125 μm x 7 μm (optional) 55 μm x 55 μm x 13 μm (optional) 2.5 μm x 2.5 μm x 0.3 μm (optional)
Sample Stage	Max. sample size ø50 mm x 8 mm For 50 mm diameter samples, only the central area can be observed Max. stroke ±5 mm When a 40 mm diameter or smaller sample is placed in the center of the scanner
Optical Microscope Observation	Total magnification rate About 220 to 1300 times (when maximum displayed on 21.5-inch monitor)

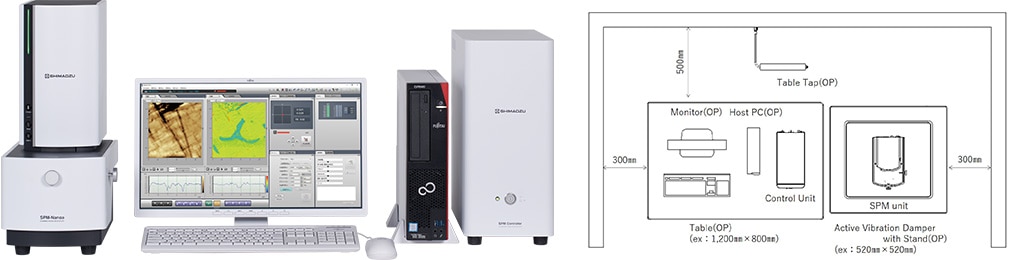

Installation Specifications

[Installation Environment] Temperature	23 °C ± 5 °C
[Installation Environment] Relative Humidity	60 % max. (with no condensation)
[Power Supply] Single Phase	100 to 240 V AC, 50/60 Hz, 15 A, one circuit
[Power Supply] Ground	Type-D ground (Grounding Resistance: 100 max.)
[Size and Weight of Units] Microscope Unit	W220 × D370 × H520mm 24kg
[Size and Weight of Units] Control Unit	W190 × D400 × H440mm 14kg
