High-Resolution Scanning Probe Microscopes Comparison

High-Resolution Scanning Probe Microscopes Comparison

This page provides a quick overview of 3 models of high-resolution Scanning Probe Microscopes . Choose the model that best suits your analysis needs from our multi-function model SPM-9700HT, automatic observation model SPM-Nanoa, to research-grade high resolution model SPM-8100FM.​

Contents

1. Summary of Product Features​



spm-9700HT

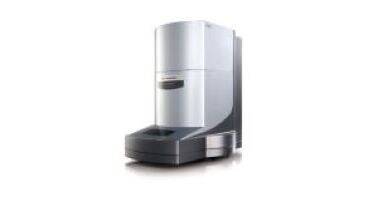

SPM-9700HT

High-Throughput Scanner Shortens Observation Times​​
• Acquisition of the image data is available at a speed of conventional than 5 times or more.​

Ease of Operation Minimizes Distraction from Observation to Analysis​​
• Navigation function and other features ensure observations can be performed quickly and smoothly.​​

Functionality and Expandability to Meet a Wide Range of Requirements​
• A generous selection of measurement modes and excellent expandability helps ensure reliable measurements.​​



spm-nanoa

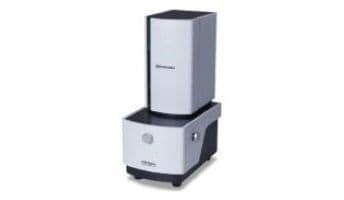

SPM-Nanoa​​​

Automatic Observation
• Adjusts laser beam, parameter settings during observation, and performs image processing automatically.​​

Extensive Functionality
• Capture sharp images with optical microscopy to SPM microscopy modes​

Various Support Functionality Achieves Fast Observation​
• High-throughput observation and fast physical property mapping​

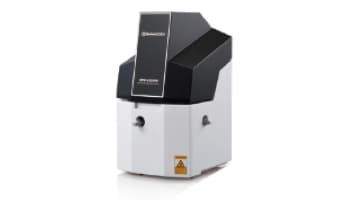

High Resolution
• Noise in air and liquids is reduced to 1/20 that of existing methods.​
​​​• Achieves the performance level of a vacuum-type SPM, even in air and liquids.

Improved Usability​​
• HT scanner extends observation area and shortens observation times.​
• Dual monitors and signal indication function provide greater flexibility

2. Comparison Table

Model​ SPM-9700HT​ SPM-Nanoa​ SPM-8100FM
Type
Scanning probe microscope
Scanning probe microscope/​
atomic force microscope ​​
High resolution scanning probe microscope
Applications
Biology, metals, minerals, ceramics, non-metals, polymer, powders, nanotechnology, thin films, semiconductors, coating films, batteries​
Main function
Multifunction​
Multifunction.​ ​
automatic observation
High resolution observation​
Max. sample size
Φ24×8mm​​
Φ50×8mm​​
Φ35×8mm​​
Noise level​
Standard​
Low​
Extremely low​
Optical axis adjustment​
(laser/detector)​​​
Manual
Automatic​​
Manual​
Sample setting
Manual
Automatic​
Manual​
Observation
parameter setting​
Manual
Automatic​​
Manual​​​
Observation modes​
Contact
checkpoint%202
checkpoint%202
checkpoint%202
 ​Dynamic
checkpoint%202
checkpoint%202

 ​Phase​
checkpoint%202
checkpoint%202

Force modulation​​
checkpoint%202
checkpoint%202

Electronic current​
checkpoint%202
checkpoint%202

MFM
checkpoint%202
checkpoint%202

KFM​
checkpoint%202
checkpoint%202

PFM

checkpoint%202

STM​

checkpoint%202

FM-AFM​


checkpoint%202
Observation in liquid
checkpoint%202
checkpoint%202
checkpoint%202 *​
Physical property mapping function (ZXY scanning)​
Elastic modulus/​Adhesion
High-speed mapping​
Elastic modulus/​Adhesion​
High-speed mapping​ Hydration/solvation measurement​​
  SPM-9700HT​ SPM-Nanoa​ SPM-8100FM

*The functionality of SPM-9700HT is available on a made to order basis.
