Diffuse Reflectance Measurement

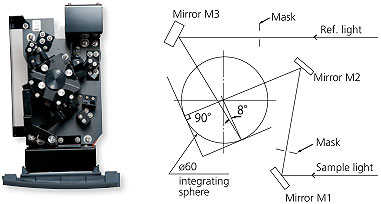

ISR-603 Integrating Sphere Attachment

276 - Relative Diffuse Reflectanc...

This attachment is used for the measurement of diffuse and spealar reflectance. Transmission of liquid and solid samples can also be measured.

Angle of incident light

0°/8°

Faixa de comprimento de onda

220 to 2600 nm

Maximum size of reective sample

Approx. 100 mm dia. x 15 mm thick

Integrating sphere

60 mm I.D. BaSO4

Detectores

PMT, InGaAs, cooled PbS

Note: For UV-3600Plus series
Note: The optional cuvette attachment is required for transmission measurement of liquid samples.

Veja mais
Mostre menos

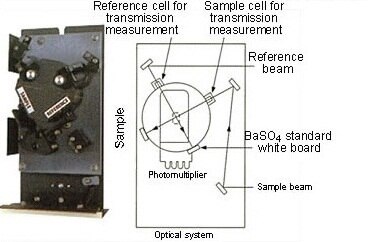

ISR-240A Integrating Sphere Attachment

276 - Relative Diffuse Reflectanc...

Angle of incident light

Faixa de comprimento de onda

240 to 800 nm

Maximum size of reflection sample

40 mm W x 70 mm H x 10 mm T or
70 mm W x 70 mm H x 5 mm T

Cell holder for transmission sample

with holder for 10 mm square cell (excluding cell), 2 sample plates for BaSO4 standard white board, 2 plates for powder samples

Note: For UV-3600Plus series

Veja mais
Mostre menos

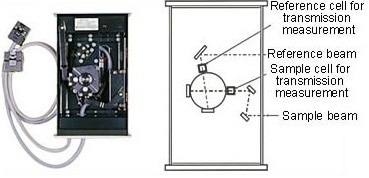

ISR-2200 Integrating Sphere Attachment

276 - Relative Diffuse Reflectanc...

Diffuse and spectral reflection can be measured without using special attachments by combining a 0°/8° incident integrating sphere with the S/R exchange function of the spectrophotometer. Since the size of the flux of the reflection measuring unit can be altered, micro samples of with a minimum flux size of 2 x 3 mm can be measured. The flux size of the transmission measuring unit also can be closed down to about 3 x 3 mm.

Angle of incident light

0°/8°

Faixa de comprimento de onda

220 to 850 nm

Maximum size of reflection sample

70 mm W x 70 mm H x 20 mm T (0° angle of incidence side)
70 mm W x 70 mm H x 12 mm T (8° angle of incidence side)

Cell holder for transmission sample

with holder for 10 mm square cell (excluding cell), 2 sample plates for BaSO4 standard white board, 2 plates for powder samples

Note: For UV-3600Plus series

Veja mais
Mostre menos

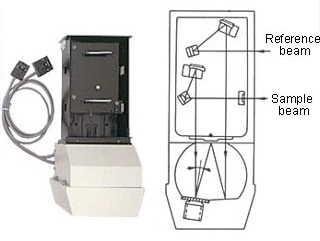

ISR-3100 Integrating Sphere Attachment

276 - Relative Diffuse Reflectanc...

Angle of incident light

0°/8°

Faixa de comprimento de onda

220 to 2600 nm

Maximum size of reflection sample

about 100 mm dia. x 15 mm T

Cell holder for transmission sample

with holder for 10 mm square cell (excluding cell), 2 sample plates for BaSO4 standard white board, 2 plates for powder samples

Note: For UV-3600Plus series

Veja mais
Mostre menos

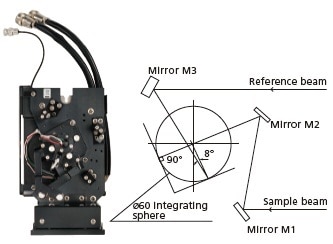

ISR-2600/ISR-2600Plus Integrating Sphere Attachment

276 - Relative Diffuse Reflectanc...

Angle of incident light

0°/8°

Measurement wavelength range

ISR-2600 220 to 850 nm, ISR-2600Plus 220 to 1400nm

Maximum size of reflection sample

70 mm W x 70 mm H x 20 mm T (0° angle of incidence side)
70 mm W x 70 mm H x 12 mm T (8° angle of incidence side)

Note: For UV-3600Plus series
Note: ISR-2600 can be used with UV-2700.

LISR-3100 150mm dia. Integrating Sphere Attachment

276 - Relative Diffuse Reflectanc...

This attachment is used to measure the transmission and reflectance spectra of solid samples, such as powder, paper and cloth. Stable measurement is possible regardless of the state of the sample surface.

Angle of incident light

Faixa de comprimento de onda

240 to 2400 nm

Maximum size of reflection sample

about 150 mm W x 170 mm H x 30 mm T

Note: For UV-3600Plus series
