GLUON

GLUON Software packages for the 4890 Controller

The software uses notched specimens (CT specimens) to evaluate the material elasto-plastic fracture toughness value (JIC). The test is conducted at constant loading rate under test-force control or CTOD control and the load is removed to calculate the crack length. The software plots graphs of the crack length increase (Δa) and crack growth resistance (J value) from the acquired data, calculates the JIC value, and evaluates its validity.

Características

  • GLUON

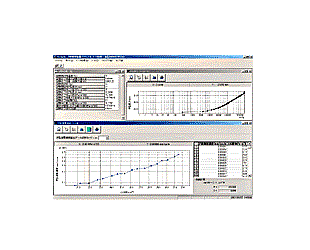

    M.P. (Multipurpose) Test Package
    Supports Complicated Measurement & Control
    This test package supports almost all type of tests that involves complex measurement and control, such as programmed loading using combinations of different waveform and multi-axis control...
  • GLUON

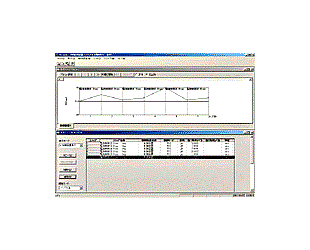

    Fatigue Test Package
    Evaluation of Cycle Fatigue
    This software applies cycle load to specimens and evaluates cycle fatigue. It supports all testing from low- through to high-cycle fatigue testing...
  • GLUON

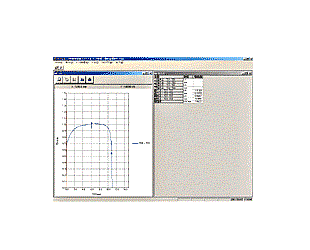

    Static Test Package
    Evaluation of Static Strength
    This package supports all tensile, compression and bending static testing. Two or more control modes (e.g. stress/strain) and load speeds can be selected...
  • GLUON

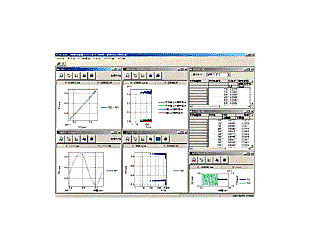

    Crack Growth Test Package
    Evaluation of Relationship between Crack Growth Rate and ΔK Value
    Logical operation functions smoothly control the ΔK value to enable the evaluation of crack growth properties. This package can also be used for introducing pre-cracking of specimens in compliance with KIC and JIC fracture toughness standards...
  • GLUON

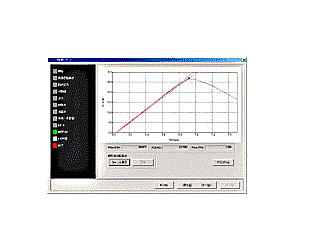

    KIC/COD Test Package
    Calculation of KIC/COD Values
    This package can conduct tests compliant with standards to calculate the KIC value and judge its validity. It can also evaluate the COD value...
  • GLUON

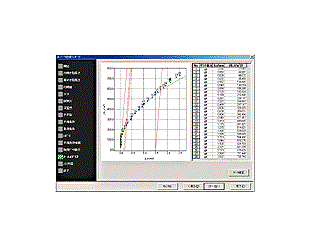

    JIC Test Package
    Calculation of JIC Value
    This package enables JIC tests that involve difficult procedures to be conducted simply. After the test ends, a J-Δa graph is created, the JIC value is calculated, and judgment as to the validity of its value is made...
